    ChameleonTheme Class
    In This Topic
    Represents the Chameleon theme, which is a two-tone theme that provides full control over its gradient color scheme.
    Syntax
    'Declaration

    <TargetViewAttribute(Xceed.Wpf.DataGrid.Views.CardflowView3D)>
    <TargetSurfaceConfigurationAttribute(Xceed.Wpf.DataGrid.Views.Surfaces.ImageSurfaceConfiguration)>
    <TypeConverterAttribute(Xceed.Wpf.DataGrid.Markup.ThemeConverter)>
    <TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>
    <NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>
    Public Class ChameleonTheme
       Inherits Xceed.Wpf.DataGrid.Views.Surfaces.MultiSurfaceTheme
    'Usage

    Dim instance As ChameleonTheme
    [TargetView(Xceed.Wpf.DataGrid.Views.CardflowView3D)]
    [TargetSurfaceConfiguration(Xceed.Wpf.DataGrid.Views.Surfaces.ImageSurfaceConfiguration)]
    [TypeConverter(Xceed.Wpf.DataGrid.Markup.ThemeConverter)]
    [TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
    [NameScopeProperty("NameScope", System.Windows.NameScope)]
    public class ChameleonTheme : Xceed.Wpf.DataGrid.Views.Surfaces.MultiSurfaceTheme
    Remarks

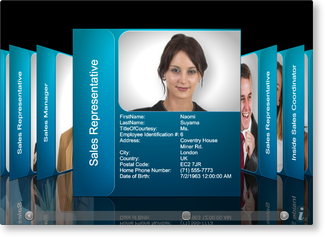

    Figure 1: Chameleon theme with default surface configurations
                    and color scheme
    Example
    All examples in this topic assume that the grid is bound to the Employees table of the Northwind database, unless stated otherwise.
    The following example demonstrates how to set a multi-surface theme using property element syntax.
    <Grid xmlns:xcdg="http://schemas.xceed.com/wpf/xaml/datagrid">
       <Grid.Resources>
          <xcdg:DataGridCollectionViewSource x:Key="cvs_employees"
                                       Source="{Binding Source={x:Static Application.Current}, Path=EmployeesTable}"/>
       </Grid.Resources>
       <xcdg:DataGridControl x:Name="EmployeesGrid"
                             ItemsSource="{Binding Source={StaticResource cvs_employees}}">

         <xcdg:DataGridControl.View>
            <xcdg:CardflowView3D>
               <xcdg:CardflowView3D.Theme>
                  <xcdg:ChameleonTheme/>
               </xcdg:CardflowView3D.Theme>
            </xcdg:CardflowView3D>
         </xcdg:DataGridControl.View>
       </xcdg:DataGridControl>
    </Grid>
    Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             Xceed.Wpf.DataGrid.Views.Theme
                Xceed.Wpf.DataGrid.Views.Surfaces.MultiSurfaceTheme
                   Xceed.Wpf.DataGrid.Views.ChameleonTheme

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
