    Pie3DChart Class
    In This Topic
    Encapsulates the 3D version of a PieChart in a Worksheet.
    Syntax
    'Declaration


    Public Class Pie3DChart
       Inherits Chart3D
    'Usage


    Dim instance As Pie3DChart
    public class Pie3DChart : Chart3D
    Example

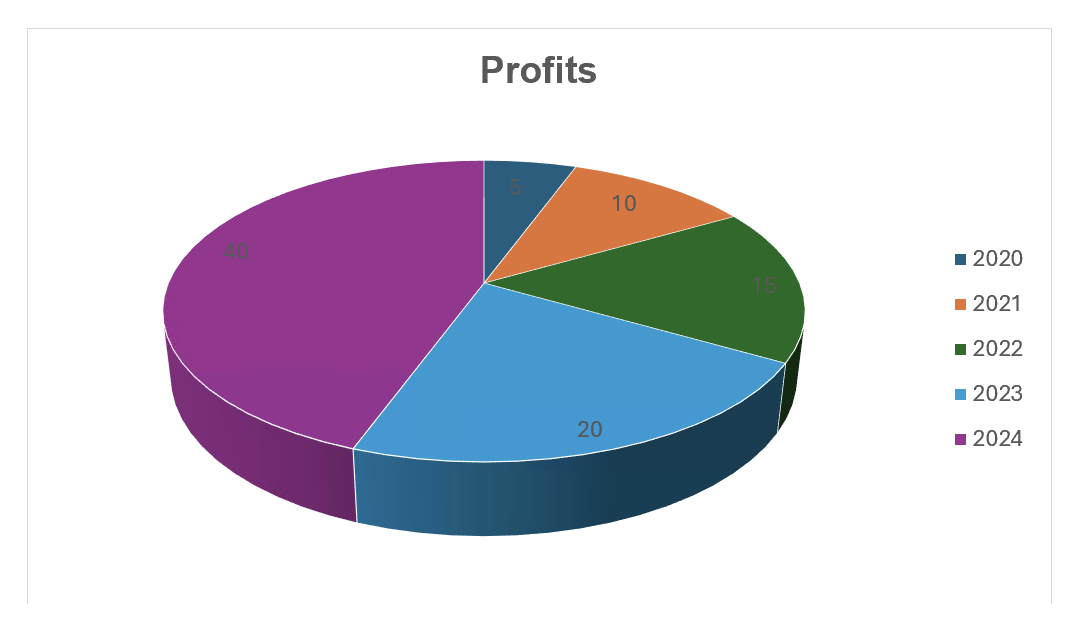

    The code below would display the following Chart:



    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20;
    worksheet.Cells[ "C5" ].Value = 28;
    worksheet.Cells[ "C6" ].Value = 33;
    worksheet.Cells[ "C7" ].Value = 12;
    worksheet.Cells[ "C8" ].Value = 45;
    worksheet.Cells[ "D4" ].Value = 7;
    worksheet.Cells[ "D5" ].Value = 33;
    worksheet.Cells[ "D6" ].Value = 15;
    worksheet.Cells[ "D7" ].Value = 35;
    worksheet.Cells[ "D8" ].Value = 25;

    // Adds a Pie3DChart with the generic Add method. The size of the Chart will be from Cell E4 to L18.
    var pie3DChart = worksheet.Charts.Add<Pie3DChart>( "E4", "L18" );

    // Sets the Chart's Title.
    pie3DChart.Title.Text = "Profits";
    pie3DChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    pie3DChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the Pie3DChart : Cells B4 to B8.
    pie3DChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Add PieSeries to the Pie3DChart (y values) by specifying fixed values.
    var pieSeries1 = pie3DChart.SeriesCollection.AddFromValues<PieSeries>( 5, 10, 15, 20, 40 );

    // Shows the Series values in the Pie3D chart.
    pieSeries1.DataPointLabels.ShowValue = true;

    // Saves Workbook to disk.
    workbook.Save();

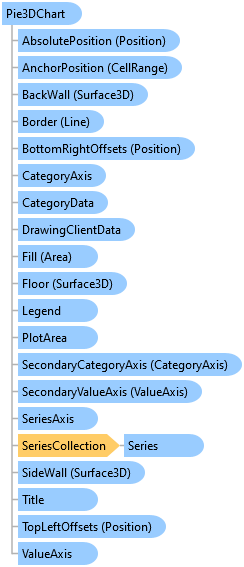

    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.Chart3D
                      Xceed.Workbooks.NET.Pie3DChart

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
