    Chart3D Class
    In This Topic
    Abstract class encapsulating a 3D Chart in a Worksheet.
    Syntax
    'Declaration


    Public MustInherit Class Chart3D
   Inherits Chart
    'Usage


    Dim instance As Chart3D
    public abstract class Chart3D : Chart
    Remarks
    This is the base class for all 3D Charts.
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.Chart3D
                      Xceed.Workbooks.NET.Area3DChart
                      Xceed.Workbooks.NET.Column3DChart
                      Xceed.Workbooks.NET.Contour3DChart
                      Xceed.Workbooks.NET.Line3DChart
                      Xceed.Workbooks.NET.Pie3DChart
                      Xceed.Workbooks.NET.Surface3DChart

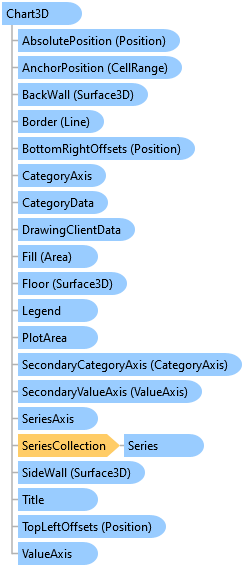

    Public Properties
     NameDescription
    Public PropertyAbsolutePositionGets or sets the absolute Position of the PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyAnchorPositionGets or sets the position of the Anchor in the Worksheet. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyAnchorTypeGets the Anchor's type. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyBackWallGets the area that corresponds to the Chart3D's back wall.
    Public PropertyBorderGets the Chart's Border. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyBottomRightOffsetsGets or sets the value used to offset the bottom right corner of a TwoCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyCategoryAxisGets the Chart's CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyCategoryDataGets or sets the CategoryData that will be used for the Chart's CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyDepthPercentGets or sets the  Series' depth, in percentage.
    Public PropertyDescriptionGets or sets the PositionedElement's description. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyDrawingClientDataGets the DrawingClientData, which is how the data should behave when the Worksheet is protected. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyFillGets the Chart's Fill. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyFloorGets the area that corresponds to the Chart3D's floor.
    Public PropertyHeightGets or sets the height of an AbsoluteAnchor or OneCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyHeightPercentGets or sets the Series' height, in percentage.
    Public PropertyIsColorVariedByPointGets or sets if the Chart automatically varies Colors for its Series' data. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyIsRightAngleAxesGets or sets if the Chart3D's Axes are displayed so that they are at a right angle (90 degrees) from each other.
    Public PropertyIsRoundedCornersGets or sets if the Chart has rounded corners. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyLegendGets the Chart's Legend. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyMeasureUnitGets or sets the Units used for measuring the PositionedElement's Width & Height. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyNameGets or sets the name of the PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyPerspectiveAngleGets or sets the angle of perspective used for viewing the Chart3D.
    Public PropertyPlotAreaGets the Chart's PlotArea. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyRotationXGets or sets how the Chart3D is rotated around a vertical pivot.
    Public PropertyRotationYGets or sets how the Chart3D is rotated around a horizontal pivot.
    Public PropertySecondaryCategoryAxisGets the Chart's secondary CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertySecondaryValueAxisGets the Chart's secondary ValueAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertySeriesAxisGets the Chart3D's SeriesAxis.
    Public PropertySeriesCollectionGets the Chart's SeriesCollection. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertySideWallGets the area that corresponds to the Chart3D's side wall.
    Public PropertyTitleGets or sets the Chart's title. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyTopLeftOffsetsGets or sets the value used to offset the top right corner of a TwoCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyTwoCellAnchorBehaviorGets or sets the behavior of a TwoCellAnchor PositionedElement when moving or deleting Rows or Columns.  (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyValueAxisGets the Chart's ValueAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyWidthGets or sets the width of an AbsoluteAnchor or OneCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Top
    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
