    RadarChart Class
    In This Topic
    Encapsulates a Chart of the Radar type in a Worksheet.
    Syntax
    'Declaration


    Public Class RadarChart
       Inherits Chart
    'Usage


    Dim instance As RadarChart
    public class RadarChart : Chart
    Example

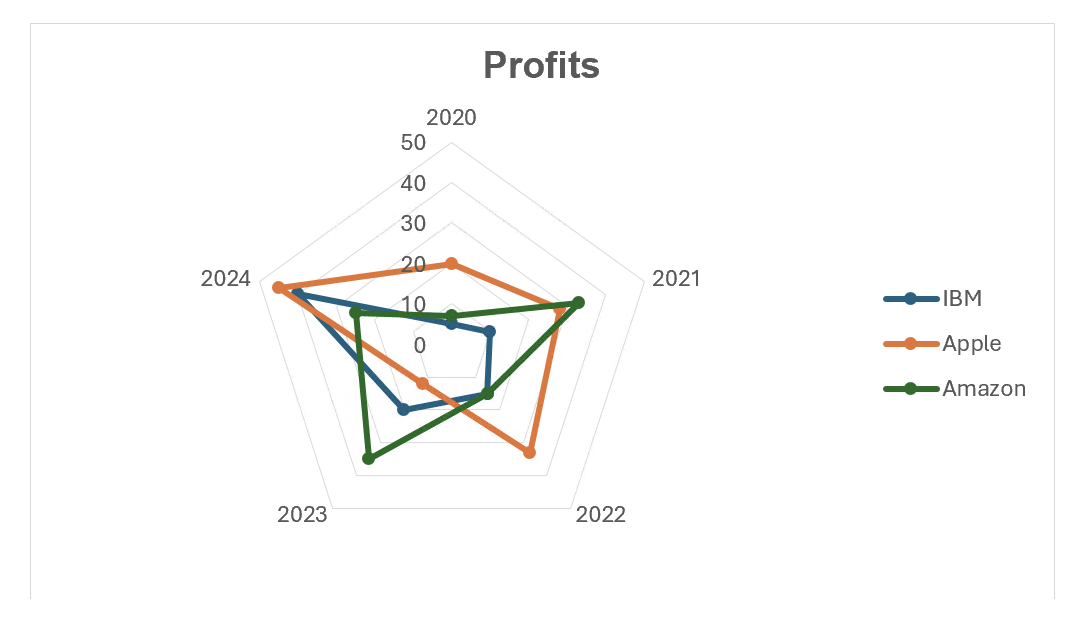

    The code below would display the following Chart:

    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20;
    worksheet.Cells[ "C5" ].Value = 28;
    worksheet.Cells[ "C6" ].Value = 33;
    worksheet.Cells[ "C7" ].Value = 12;
    worksheet.Cells[ "C8" ].Value = 45;
    worksheet.Cells[ "D4" ].Value = 7;
    worksheet.Cells[ "D5" ].Value = 33;
    worksheet.Cells[ "D6" ].Value = 15;
    worksheet.Cells[ "D7" ].Value = 35;
    worksheet.Cells[ "D8" ].Value = 25;

    // Adds a RadarChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
    var radarChart = worksheet.Charts.Add<RadarChart>( "E4", "L18" );
    radarChart.SubType = RadarChartSubType.Marker;

    // Sets the Chart's Title.
    radarChart.Title.Text = "Profits";
    radarChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    radarChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the RadarChart : Cells B4 to B8.
    radarChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Adds RadarSeries to the RadarChart (y values) by specifying fixed values, a Range of Cells’ Adresses and a Range of Cells’ Row & Column ids.
    var radarSeries1 = radarChart.SeriesCollection.AddFromValues<RadarSeries>( 5, 10, 15, 20, 40 );
    radarSeries1.Name = "IBM";
    var radarSeries2 = radarChart.SeriesCollection.AddFromCells<RadarSeries>( "C4", "C8" );
    radarSeries2.Name = "Apple";
    var radarSeries3 = radarChart.SeriesCollection.AddFromCells<RadarSeries>( 3, 3, 7, 3 );
    radarSeries3.Name = "Amazon";

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.RadarChart

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
