    LineChart Class
    In This Topic
    Encapsulates a Chart of the Line type in the Worksheet.
    Syntax
    'Declaration


    Public Class LineChart
       Inherits Chart
    'Usage


    Dim instance As LineChart
    public class LineChart : Chart
    Example

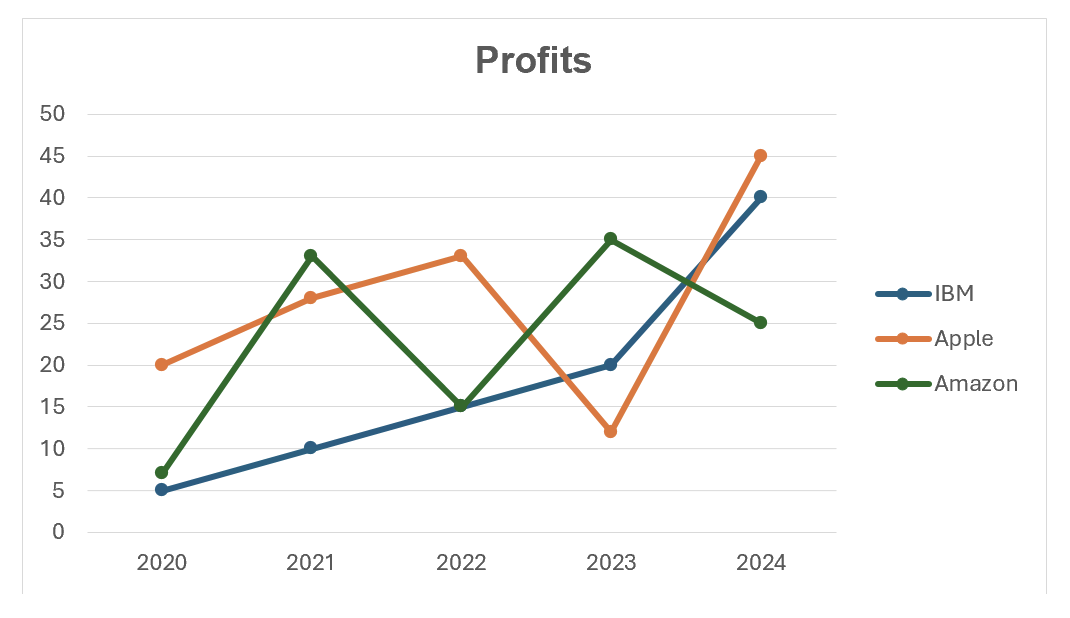

    The code below would display the following Chart:

    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20;
    worksheet.Cells[ "C5" ].Value = 28;
    worksheet.Cells[ "C6" ].Value = 33;
    worksheet.Cells[ "C7" ].Value = 12;
    worksheet.Cells[ "C8" ].Value = 45;
    worksheet.Cells[ "D4" ].Value = 7;
    worksheet.Cells[ "D5" ].Value = 33;
    worksheet.Cells[ "D6" ].Value = 15;
    worksheet.Cells[ "D7" ].Value = 35;
    worksheet.Cells[ "D8" ].Value = 25;

    // Adds a LineChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
    var lineChart = worksheet.Charts.Add<LineChart>( "E4", "L18" );
    lineChart.SubType = LineChartSubType.LineWithMarkers;

    // Sets the Chart's Title.
    lineChart.Title.Text = "Profits";
    lineChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    lineChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the LineChart : Cells B4 to B8.
    lineChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Adds LineSeries to the ColumnChart (y values) by specifying fixed values, a Range of Cells’ Adresses and a Range of Cells’ Row & Column ids.
    var lineSeries1 = lineChart.SeriesCollection.AddFromValues<LineSeries>( 5, 10, 15, 20, 40 );
    lineSeries1.Name = "IBM";
    var lineSeries2 = lineChart.SeriesCollection.AddFromCells<LineSeries>( "C4", "C8" );
    lineSeries2.Name = "Apple";
    var lineSeries3 = lineChart.SeriesCollection.AddFromCells<LineSeries>( 3, 3, 7, 3 );
    lineSeries3.Name = "Amazon";

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.LineChart

    Public Constructors
     NameDescription
    Public ConstructorCreates a LineChart in the Worksheet.
    Top
    Public Properties
     NameDescription
    Public PropertyGets or sets the absolute Position of the PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets or sets the position of the Anchor in the Worksheet. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Anchor's type. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Chart's Border. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the value used to offset the bottom right corner of a TwoCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Chart's CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the CategoryData that will be used for the Chart's CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the PositionedElement's description. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the DrawingClientData, which is how the data should behave when the Worksheet is protected. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Chart's Fill. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the height of an AbsoluteAnchor or OneCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets or sets if the Chart automatically varies Colors for its Series' data. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets if the Chart has rounded corners. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets the Chart's Legend. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the Units used for measuring the PositionedElement's WidthHeight. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets or sets the name of the PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Chart's PlotArea. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets the Chart's secondary CategoryAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets the Chart's secondary ValueAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets the Chart's SeriesCollection. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the LineChart's sub type.
    Public PropertyGets or sets the Chart's title. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the value used to offset the top right corner of a TwoCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets or sets the behavior of a TwoCellAnchor PositionedElement when moving or deleting Rows or Columns.  (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Public PropertyGets the Chart's ValueAxis. (Inherited from Xceed.Workbooks.NET.Chart)
    Public PropertyGets or sets the width of an AbsoluteAnchor or OneCellAnchor PositionedElement. (Inherited from Xceed.Workbooks.NET.PositionedElement)
    Top
    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
