    AreaChart Class
    In This Topic
    Encapsulates a Chart of the Area type in a Worksheet.
    Syntax
    'Declaration


    Public Class AreaChart
       Inherits Chart
    'Usage


    Dim instance As AreaChart
    public class AreaChart : Chart
    Example

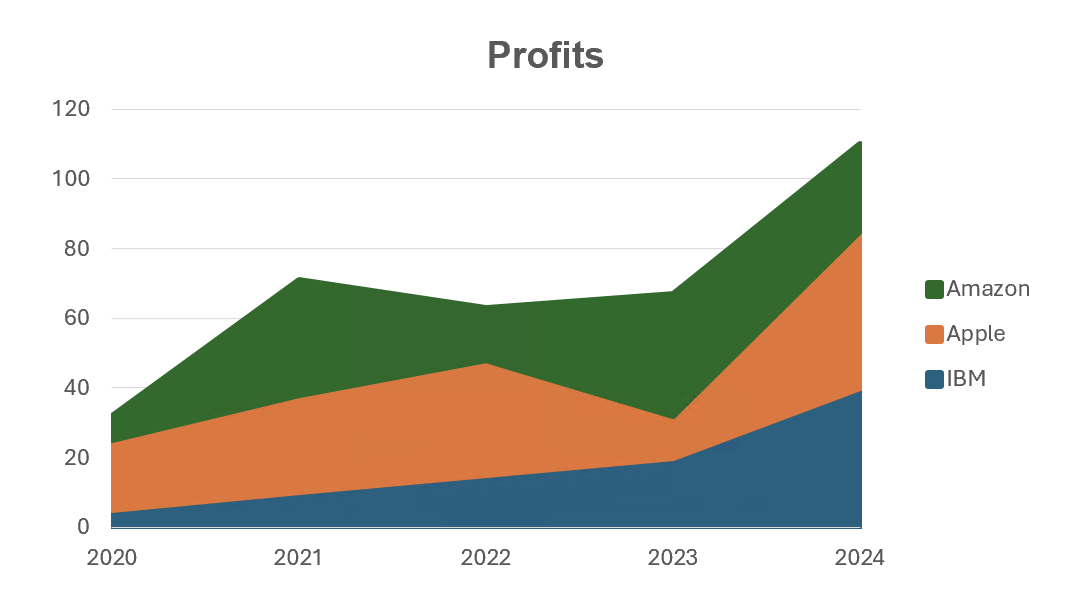

    The code below would display the following Chart





    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20;
    worksheet.Cells[ "C5" ].Value = 28;
    worksheet.Cells[ "C6" ].Value = 33;
    worksheet.Cells[ "C7" ].Value = 12;
    worksheet.Cells[ "C8" ].Value = 45;
    worksheet.Cells[ "D4" ].Value = 7;
    worksheet.Cells[ "D5" ].Value = 33;
    worksheet.Cells[ "D6" ].Value = 15;
    worksheet.Cells[ "D7" ].Value = 35;
    worksheet.Cells[ "D8" ].Value = 25;

    // Adds an AreaChart with the generic Add method and set its SubType. The size of the Chart will be from Cells E4 to L18.
    var areaChart = worksheet.Charts.Add<AreaChart>( "E4", "L18" );
    areaChart.SubType = AreaChartSubType.Stacked;

    // Sets the Chart's Title.
    areaChart.Title.Text = "Profits";
    areaChart.Title.TextOptions.Font.Bold = true;

    // Sets the Chart's Legend.
    areaChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the AreaChart: Cells B4 to B8.
    areaChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Adds AreaSeries to the AreaChart (y values) by specifying fixed values, a range of Adresses and a range of Rows & Columns ids.
    var areaSeries1 = areaChart.SeriesCollection.AddFromValues<AreaSeries>( 5, 10, 15, 20, 40 );
    areaSeries1.Name = "IBM";
    var areaSeries2 = areaChart.SeriesCollection.AddFromCells<AreaSeries>( "C4", "C8" );
    areaSeries2.Name = "Apple";
    var areaSeries3 = areaChart.SeriesCollection.AddFromCells<AreaSeries>( 3, 3, 7, 3 );
    areaSeries3.Name = "Amazon";

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.AreaChart

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
