    ContourSeries Class
    In This Topic
    Encapsulates Series of the Contour type.
    Syntax
    'Declaration


    Public Class ContourSeries
       Inherits SurfaceSeries
    'Usage


    Dim instance As ContourSeries
    public class ContourSeries : SurfaceSeries
    Remarks
    This is usually used in Contour3DCharts
    Example

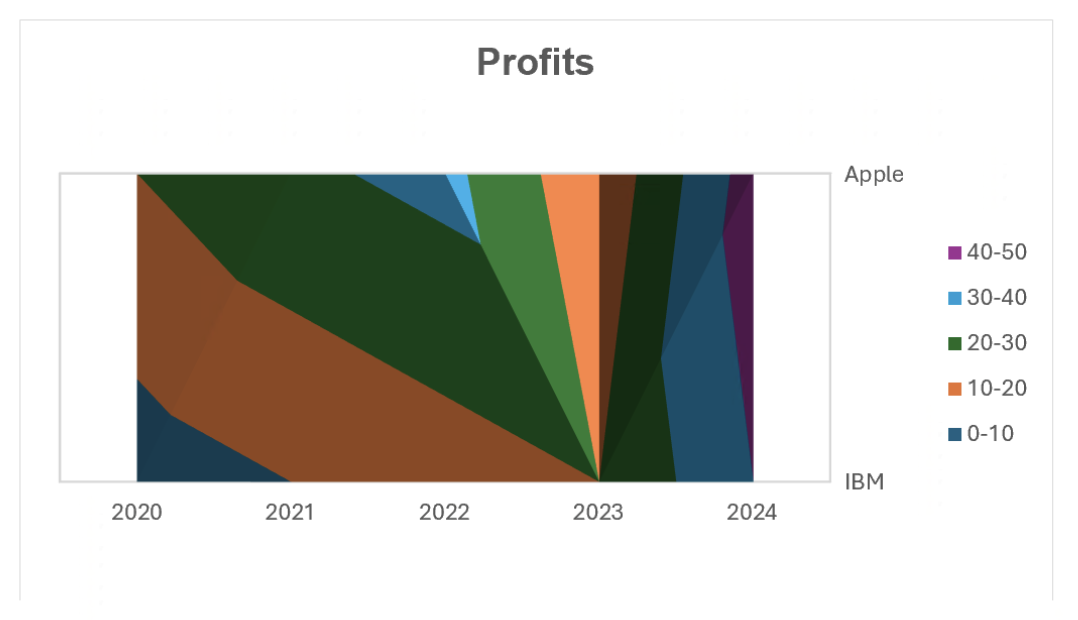

    The code below would display the following Chart:



    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20d;
    worksheet.Cells[ "C5" ].Value = 28d;
    worksheet.Cells[ "C6" ].Value = 33d;
    worksheet.Cells[ "C7" ].Value = 12d;
    worksheet.Cells[ "C8" ].Value = 45d;

    // Adds a Contour3DChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
    var contour3DChart = worksheet.Charts.Add<Contour3DChart>( "E4", "L18" );
    contour3DChart.SubType = Contour3DChartSubType.Contour;

    // Sets the Chart's Title.
    contour3DChart.Title.Text = "Profits";
    contour3DChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    contour3DChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the Contour3DChart : Cells B4 to B8.
    contour3DChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Adds ContourSeries to the Contour3DChart (y values) by specifying fixed values and a range of Cells’ Adresses.
    var contourSeries1 = contour3DChart.SeriesCollection.AddFromValues<ContourSeries>( 5d, 10d, 15d, 20d, 40d );
    contourSeries1.Name = "IBM";
    var contourSeries2 = contour3DChart.SeriesCollection.AddFromCells<ContourSeries>( "C4", "C8" );
    contourSeries2.Name = "Apple";

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.ChartValueRange
                Xceed.Workbooks.NET.Series
                   Xceed.Workbooks.NET.SurfaceSeries
                      Xceed.Workbooks.NET.ContourSeries

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
