    Contour3DChart Class
    In This Topic
    Encapsulates a 3D Chart of the Contour type in a Worksheet
    Syntax
    'Declaration


    Public Class Contour3DChart
       Inherits Chart3D
    'Usage


    Dim instance As Contour3DChart
    public class Contour3DChart : Chart3D
    Remarks
    A minimum of 2 ContourSeries is necessary in order to use this Chart.
    Example

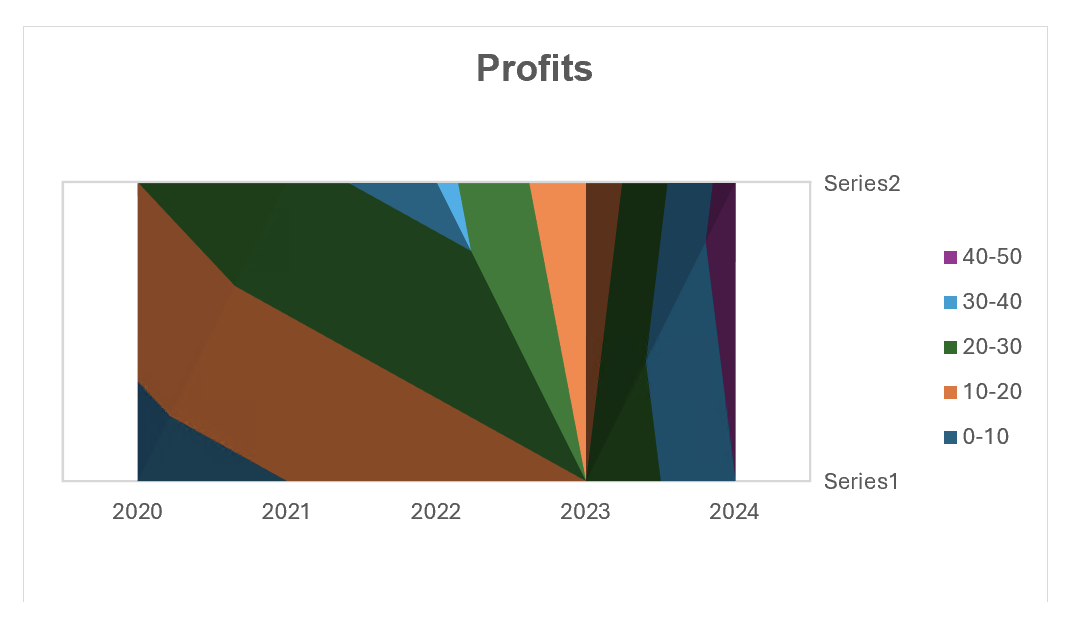

    The code below would display the following Chart:



    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20;
    worksheet.Cells[ "C5" ].Value = 28;
    worksheet.Cells[ "C6" ].Value = 33;
    worksheet.Cells[ "C7" ].Value = 12;
    worksheet.Cells[ "C8" ].Value = 45;
    worksheet.Cells[ "D4" ].Value = 7;
    worksheet.Cells[ "D5" ].Value = 33;
    worksheet.Cells[ "D6" ].Value = 15;
    worksheet.Cells[ "D7" ].Value = 35;
    worksheet.Cells[ "D8" ].Value = 25;

    // Adds a Contour3DChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
    var contour3DChart = worksheet.Charts.Add<Contour3DChart>( "E4", "L18" );
    contour3DChart.SubType = Contour3DChartSubType.Contour;

    // Sets the Chart's Title.
    contour3DChart.Title.Text = "Profits";
    contour3DChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    contour3DChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the Column3DChart : Cells B4 to B8.
    contour3DChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Adds ContourSeries to the Contour3DChart (y values) by specifying fixed values and a Range of Cells’ Adresses.
    var contourSeries1 = contour3DChart.SeriesCollection.AddFromValues<ContourSeries>( 5, 10, 15, 20, 40 );
    var contourSeries2 = contour3DChart.SeriesCollection.AddFromCells<ContourSeries>( "C4", "C8" );

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.PositionedElement
                Xceed.Workbooks.NET.Chart
                   Xceed.Workbooks.NET.Chart3D
                      Xceed.Workbooks.NET.Contour3DChart

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
