'DeclarationPublic Class AreaSeries Inherits Series
'UsageDim instance As AreaSeries
public class AreaSeries : Series

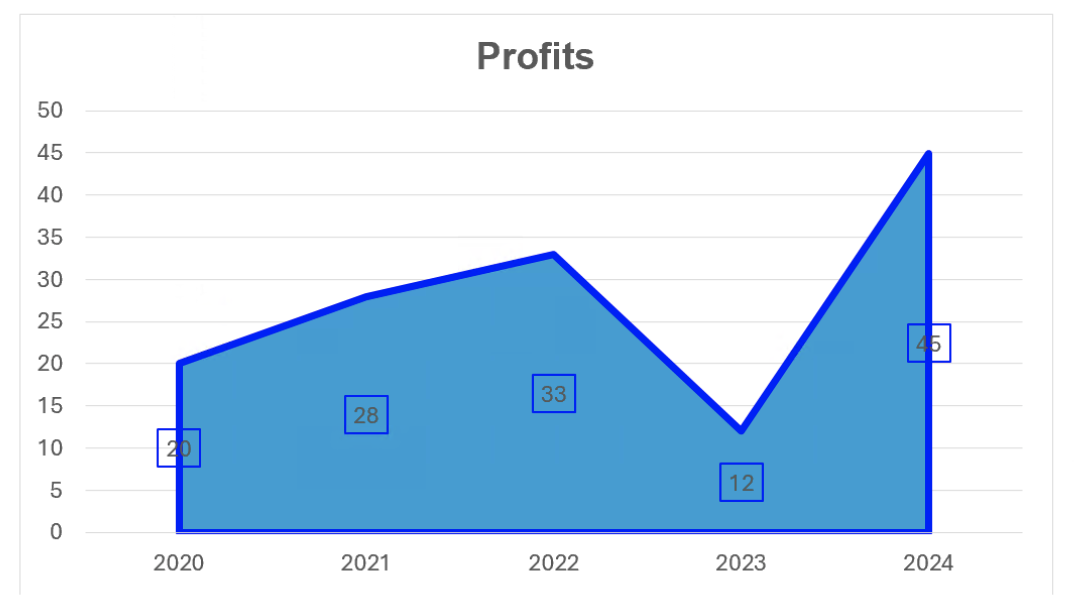

The code below would display the following Chart:
var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" ); // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet. var worksheet = workbook.Worksheets[ 0 ]; // Adds Values for Category. worksheet.Cells[ "B4" ].Value = 2020; worksheet.Cells[ "B5" ].Value = 2021; worksheet.Cells[ "B6" ].Value = 2022; worksheet.Cells[ "B7" ].Value = 2023; worksheet.Cells[ "B8" ].Value = 2024; // Adds an AreaChart with the generic Add method and set its SubType. The size of the Chart will be from cell E4 to L18. var areaChart = worksheet.Charts.Add<AreaChart>( "E4", "L18" ); areaChart.SubType = AreaChartSubType.Standard; // Sets the Chart's Title. areaChart.Title.Text = "Profits"; areaChart.Title.TextOptions.Font.Bold = true; // Sets the Category data(x values) for the AreaChart : Cells B4 to B8. areaChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" ); // Adds AreaSeries to the AreaChart (y values) by specifying fixed values. var areaSeries = areaChart.SeriesCollection.AddFromValues<AreaSeries>( 20, 28, 33, 12, 45 ); // Customizes the Fill an Stroke of the AreaSeries. areaSeries.Fill.ThemeColor = new ThemeColor( ThemeColorType.Accent4 ); areaSeries.Stroke.Color = Xceed.Drawing.Color.Blue; areaSeries.Stroke.Width = 2.5; // Shows the DataPoint Labels and displayss a border around them. areaSeries.DataPointLabels.ShowValue = true; areaSeries.DataPointLabels.Border.Color = Xceed.Drawing.Color.Blue; // Saves Workbook to disk. workbook.Save();
System.Object
Xceed.Workbooks.NET.WorkbookElement
Xceed.Workbooks.NET.WorksheetElement
Xceed.Workbooks.NET.ChartValueRange
Xceed.Workbooks.NET.Series
Xceed.Workbooks.NET.AreaSeries
| Name | Description | |
|---|---|---|
![]() | AreaSeries Constructor | Creates an AreaSeries in the Chart. |
| Name | Description | |
|---|---|---|
![]() | CellRange | Gets the CellRange associated with the ChartValueRange. (Inherited from Xceed.Workbooks.NET.ChartValueRange) |
![]() | DataPointLabels | Gets the AreaSeries' data labels. |
![]() | Fill | Gets the Area that will be filled with a color. (Inherited from Xceed.Workbooks.NET.Series) |
![]() | Name | Gets or sets the Series' name. (Inherited from Xceed.Workbooks.NET.Series) |
![]() | PlotOnSecondaryAxis | Gets or sets if the Series is plotted on the secondary Axis. (Inherited from Xceed.Workbooks.NET.Series) |
![]() | Stroke | Gets the Line associated with the Series. (Inherited from Xceed.Workbooks.NET.Series) |
![]() | Values | Gets or sets the values associated with the ChartValueRange. (Inherited from Xceed.Workbooks.NET.ChartValueRange) |
.NET: net5.0, net5.0-windows, net6.0, net6.0-macos, net6.0-windows, net7.0, net7.0-macos, net7.0-windows, net8.0, net8.0-browser, net8.0-macos, net8.0-windows, net9.0, net9.0-browser, net9.0-macos, net9.0-windows, net10.0, net10.0-browser, net10.0-macos, net10.0-windows.
.NET Framework: net40, net403, net45, net451, net452, net46, net461, net462, net463, net47, net471, net472, net48, net481.
