    GroupLevelIndicatorPane Class
    In This Topic
    The GroupLevelIndicatorPane class represents a control that contains group-level indicators that indicate the group-level in which an item is located.
    Syntax
    'Declaration

<TemplatePartAttribute(Name="PART_GroupLevelIndicatorHost", Type=System.Windows.Controls.Panel)>
<StyleTypedPropertyAttribute(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)>
<XmlLangPropertyAttribute("Language")>
<UsableDuringInitializationAttribute(True)>
<RuntimeNamePropertyAttribute("Name")>
<UidPropertyAttribute("Uid")>
<TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>
<NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>
Public Class GroupLevelIndicatorPane
   Inherits System.Windows.Controls.Control
    'Usage

Dim instance As GroupLevelIndicatorPane
    [TemplatePart(Name="PART_GroupLevelIndicatorHost", Type=System.Windows.Controls.Panel)]
[StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
[XmlLangProperty("Language")]
[UsableDuringInitialization(true)]
[RuntimeNameProperty("Name")]
[UidProperty("Uid")]
[TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
[NameScopeProperty("NameScope", System.Windows.NameScope)]
public class GroupLevelIndicatorPane : System.Windows.Controls.Control
    Remarks

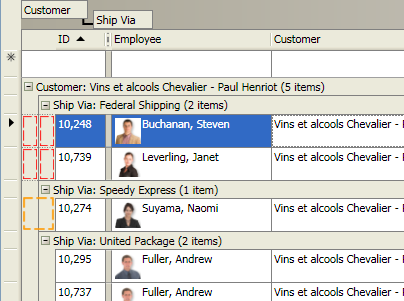

    Figure 1: GroupLevelIndicators (red) and GroupLevleIndicatorPane (orang)
    Example
    All examples in this topic assume that the grid is bound to the Orders table of the Northwind database, unless stated otherwise.
    The following example demonstrates how to hide the group-level indicator pane by creating a style which sets the Visibility property of GroupLevelIndicatorPane objects to Collapsed.
    <Grid xmlns:xcdg="http://schemas.xceed.com/wpf/xaml/datagrid">
  <Grid.Resources>
     <Style TargetType="{x:Type xcdg:GroupLevelIndicatorPane}">
       <Setter Property="Visibility" Value="Collapsed"/>
     </Style>
    <xcdg:DataGridCollectionViewSource x:Key="cvs_orders"
                                    Source="{Binding Source={x:Static Application.Current},
                                                      Path=Orders}">

      <xcdg:DataGridCollectionViewSource.GroupDescriptions>
        <xcdg:DataGridGroupDescription PropertyName="ShipCountry"/>
      </xcdg:DataGridCollectionViewSource.GroupDescriptions>
    </xcdg:DataGridCollectionViewSource>
  </Grid.Resources>
  <xcdg:DataGridControl x:Name="OrdersGrid"
                        ItemsSource="{Binding Source={StaticResource cvs_orders}}"/>
</Grid>
    Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Control
                         Xceed.Wpf.DataGrid.GroupLevelIndicatorPane

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
