Xceed DataGrid for WPF v7.3 Documentation
 |
Prerequisite Knowledge Views and Themes: Multi-surface Themes Overview |
The Elemental themes, which are represented by the ElementalBlackTheme, ElementalBlueTheme, and ElementalSilverTheme classes, are basic black, blue, and silver themes that were designed to blend perfectly with their corresponding Office 2007 themes.

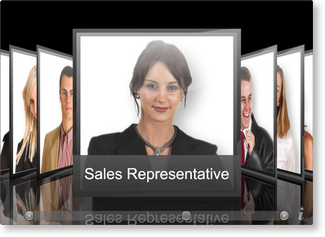

 Figure 1: Elemental Black theme with default surface configurations |
 Figure 2: Elemental Blue theme with default surface configurations |

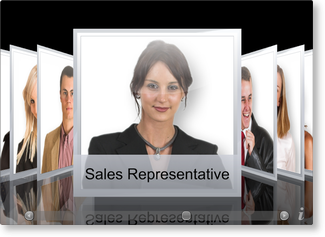

 Figure 3: Elemental Silver theme with default surface configurations |
The Elemental themes are contained in the "Views 3D" assembly (Xceed.Wpf.DataGrid.Views3D.dll), and like other themes, they can be set using either attribute syntax or property element syntax through a multi-surface view's Theme property (see Example 1).
| Theme | Color scheme | Attribute syntax | Property element syntax | Target views | Assembly |
|---|---|---|---|---|---|
| Elemental | Black | [View.]Elemental.Black [View.]ElementalBlackTheme |
ElementalBlackTheme | CardflowView3D | Xceed.Wpf.DataGrid.Views3D |
| Elemental | Blue | [View.]Elemental.Blue [View.]ElementalBlueTheme |
ElementalBlueTheme | CardflowView3D | Xceed.Wpf.DataGrid.Views3D |
| Elemental | Silver | [View.]Elemental.Silver [View.]ElementalSilverTheme |
ElementalSilverTheme | CardflowView3D | Xceed.Wpf.DataGrid.Views3D |
If a surface configuration is added to the SurfaceConfigurations collection but does not specify the surfaces to which it should be applied, it will be ignored. If more than one configuration specifies the same surface, the last one on which the Surfaces attached property was set will be used.
Table 1: Default Elemental surface configurations
| Multi-surface view | Surface | Default surface configuration | Index |
|---|---|---|---|
| CardflowView3D | Left | ImageSurfaceConfiguration | 0 |
| CardflowView3D | Right | ImageSurfaceConfiguration | 0 |
| CardflowView3D | Center | ImageAndTitleSurfaceConfiguration | 1 |
| CardflowView3D | Back | CompleteSurfaceConfiguration | 2 |
For some surface configurations, the Elemental themes support more than one title-region position (see Table 2). As such, they expose a TitleRegionPosition attached property that can be set on any of the supported surface configurations to change the position of the title region. The TitleRegionPosition property can also be set directly on the themes to change the title-region position of all the supported surface configurations.
Table 2: Supported title-region positions
| Surface configuration | Positions |
|---|---|
| TitleSurfaceConfiguration | Top, Middle, and Bottom |
| ImageAndTitleSurfaceConfiguration | Top, Middle, and Bottom |
All examples in this topic assume that the grid is bound to the Employees table of the Northwind database, unless stated otherwise.
Example 1: Using Elemental themes
The following example demonstrates how to set a multi-surface theme using property element syntax.
| XAML |
Copy Code |
|---|---|
<Grid xmlns:xcdg="http://schemas.xceed.com/wpf/xaml/datagrid"> <Grid.Resources> <xcdg:DataGridCollectionViewSource x:Key="cvs_employees" Source="{Binding Source={x:Static Application.Current}, Path=EmployeesTable}"/> </Grid.Resources> <xcdg:DataGridControl x:Name="EmployeesGrid" ItemsSource="{Binding Source={StaticResource cvs_employees}}"> <xcdg:DataGridControl.View> <xcdg:CardflowView3D> <xcdg:CardflowView3D.Theme> <xcdg:ElementalBlackTheme/> </xcdg:CardflowView3D.Theme> </xcdg:CardflowView3D> </xcdg:DataGridControl.View> </xcdg:DataGridControl> </Grid> | |
