AnimatedTimelinePanel Class

Visual Basic
C#

'Declaration

<LocalizabilityAttribute(LocalizationCategory.Ignore)>

<ContentPropertyAttribute("Children")>

<StyleTypedPropertyAttribute(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)>

<XmlLangPropertyAttribute("Language")>

<UsableDuringInitializationAttribute(True)>

<RuntimeNamePropertyAttribute("Name")>

<UidPropertyAttribute("Uid")>

<TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>

<NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>

Public Class AnimatedTimelinePanel

   Inherits AnimationPanel

'Usage

Dim instance As AnimatedTimelinePanel

[Localizability(LocalizationCategory.Ignore)]

[ContentProperty("Children")]

[StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]

[XmlLangProperty("Language")]

[UsableDuringInitialization(true)]

[RuntimeNameProperty("Name")]

[UidProperty("Uid")]

[TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]

[NameScopeProperty("NameScope", System.Windows.NameScope)]

public class AnimatedTimelinePanel : AnimationPanel

This example uses AnimatedTimelinePanel to draw several images along a timeline.

XAML

<Window x:Class="AnimatedTimelinePanelSample.MainWindow"

        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

        xmlns:xctk="http://schemas.xceed.com/wpf/xaml/toolkit"

        Title="AnimatedTimelinePanelSample">

  <Grid>

    <xctk:AnimatedTimelinePanel BeginDate="01/01/2007"

                                      EndDate="12/31/2007">



      <Image Width="300"

            xctk:AnimatedTimelinePanel.Date="02/15/2007"

            Source="C:\Windows\Web\Wallpaper\Theme2\img8.jpg" />



      <Image Width="300"

            xctk:AnimatedTimelinePanel.Date="06/16/2007"

            Source="C:\Windows\Web\Wallpaper\Theme2\img8.jpg" />



      <Image Width="300"

            xctk:AnimatedTimelinePanel.Date="11/29/2007"

            Source="C:\Windows\Web\Wallpaper\Theme2\img8.jpg" />



    </xctk:AnimatedTimelinePanel>

  </Grid>

</Window>

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               System.Windows.FrameworkElement
                  System.Windows.Controls.Panel
                     Xceed.Wpf.Toolkit.Panels.PanelBase
                        Xceed.Wpf.Toolkit.Panels.AnimationPanel
                           Xceed.Wpf.Toolkit.Panels.AnimatedTimelinePanel

Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

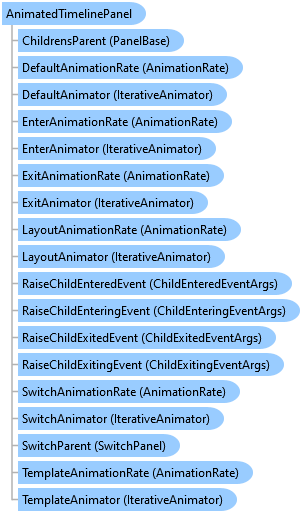

AnimatedTimelinePanel Members
Xceed.Wpf.Toolkit.Panels Namespace
