    BubbleSeries Class
    In This Topic
    Encapsulates Series of the Bubble type.
    Syntax
    'Declaration


    Public Class BubbleSeries
       Inherits Series
    'Usage


    Dim instance As BubbleSeries
    public class BubbleSeries : Series
    Remarks
    This is usually used in BubbleCharts.
    Example

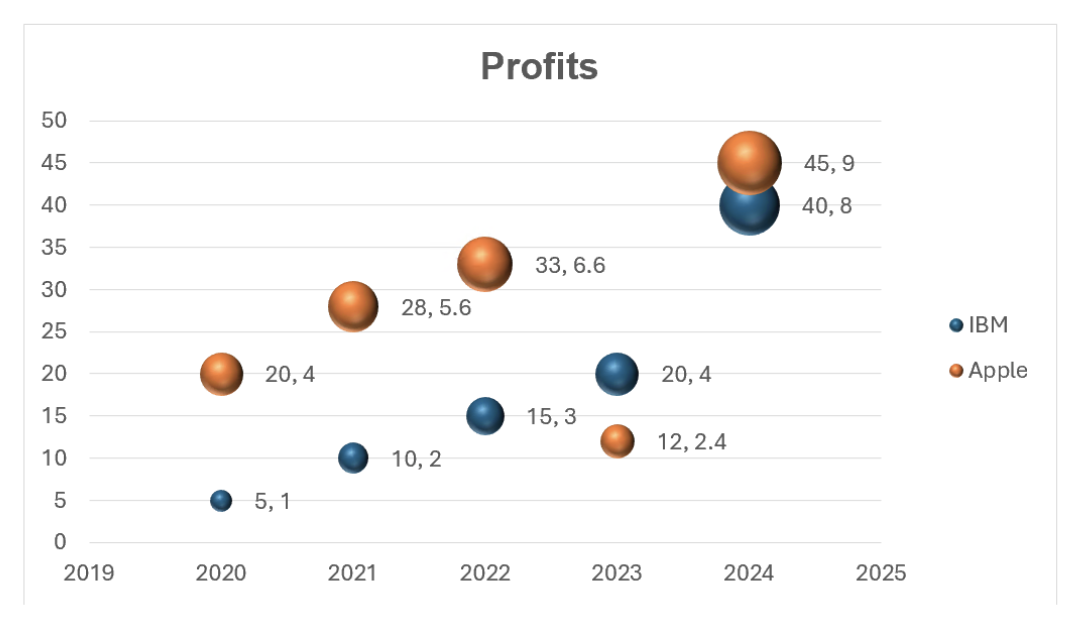

    The code below would display the following Chart:



    var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

    // Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
    var worksheet = workbook.Worksheets[ 0 ];

    // Adds Values for Category.
    worksheet.Cells[ "B4" ].Value = 2020;
    worksheet.Cells[ "B5" ].Value = 2021;
    worksheet.Cells[ "B6" ].Value = 2022;
    worksheet.Cells[ "B7" ].Value = 2023;
    worksheet.Cells[ "B8" ].Value = 2024;

    // Adds Values for Series.
    worksheet.Cells[ "C4" ].Value = 20d;
    worksheet.Cells[ "C5" ].Value = 28d;
    worksheet.Cells[ "C6" ].Value = 33d;
    worksheet.Cells[ "C7" ].Value = 12d;
    worksheet.Cells[ "C8" ].Value = 45d;

    // Adds a BubbleChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
    var bubbleChart = worksheet.Charts.Add<BubbleChart>( "E4", "L18" );
    bubbleChart.SubType = BubbleChartSubType.Bubble3D;

    // Sets the Chart's Title.
    bubbleChart.Title.Text = "Profits";
    bubbleChart.Title.TextOptions.Font.Bold = true;

    // Sets the Legend.
    bubbleChart.Legend.Position = LegendPositionType.Right;

    // Sets the Category data(x values) for the BubbleChart : Cells B4 to B8.
    bubbleChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

    // Scales the Chart's bubble to 50%.
    bubbleChart.BubbleScale = 50;

    // Adds BubbleSeries to the BubbleChart (y values) by specifying fixed values and a range of Cells’ Adresses.
    var bubbleSeries1 = bubbleChart.SeriesCollection.AddFromValues<BubbleSeries>( 5d, 10d, 15d, 20d, 40d );
    bubbleSeries1.Name = "IBM";
    var bubbleSeries2 = bubbleChart.SeriesCollection.AddFromCells<BubbleSeries>( "C4", "C8" );
    bubbleSeries2.Name = "Apple";

    // Sets the sizes of the bubbles based on their value.
    var bubbleSeriesSize = new List<double>();
    bubbleSeries1.Values.Cast<double>().ToList().ForEach( value => bubbleSeriesSize.Add( value / 5 ) );
    bubbleSeries1.BubbleSizes = bubbleSeriesSize.ToArray();
    bubbleSeriesSize.Clear();
    bubbleSeries2.Values.Cast<double>().ToList().ForEach( value => bubbleSeriesSize.Add( value / 5 ) );
    bubbleSeries2.BubbleSizes = bubbleSeriesSize.ToArray();

    // Shows the DataPoint Labels for the BubbleSeries and positions them.
    bubbleSeries1.DataPointLabels.ShowValue = true;
    bubbleSeries1.DataPointLabels.Position = PointDataPointLabelsPositionType.Right;
    bubbleSeries1.DataPointLabels.ShowBubbleSize = true;
    bubbleSeries2.DataPointLabels.ShowValue = true;
    bubbleSeries2.DataPointLabels.Position = PointDataPointLabelsPositionType.Right;
    bubbleSeries2.DataPointLabels.ShowBubbleSize = true;

    // Saves Workbook to disk.
    workbook.Save();
    Inheritance Hierarchy

    System.Object
       Xceed.Workbooks.NET.WorkbookElement
          Xceed.Workbooks.NET.WorksheetElement
             Xceed.Workbooks.NET.ChartValueRange
                Xceed.Workbooks.NET.Series
                   Xceed.Workbooks.NET.BubbleSeries

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
