ContourSeries Class
Encapsulates Series of the Contour type.
Syntax
'Declaration

Public Class ContourSeries
   Inherits SurfaceSeries

'Usage

Dim instance As ContourSeries
Remarks
This is usually used in Contour3DCharts
Example

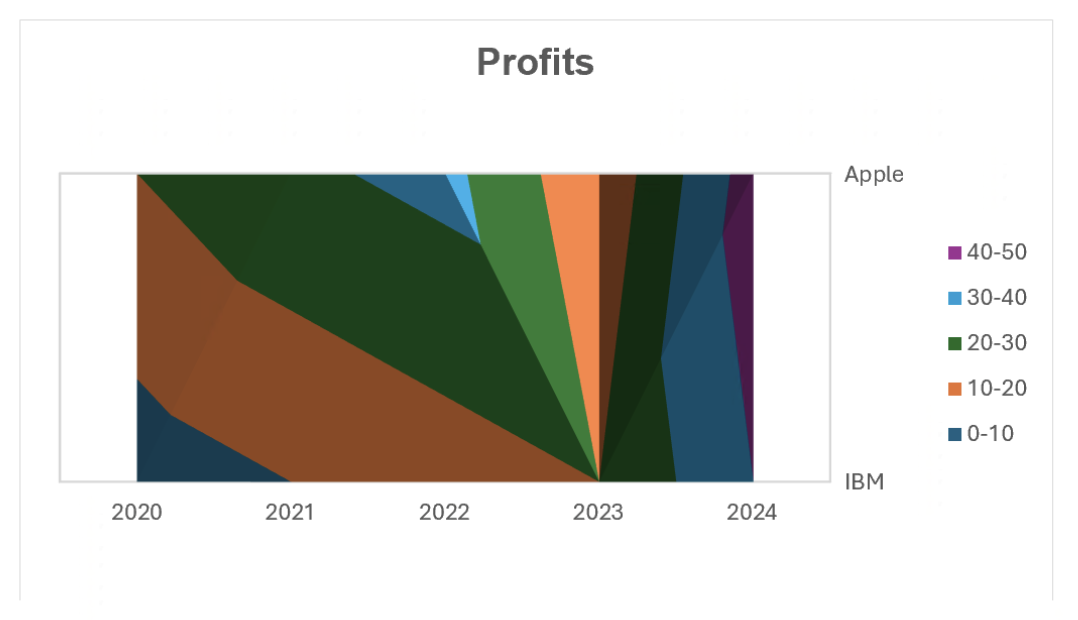

The code below would display the following Chart:



var workbook = Workbook.Create( ChartSample.ChartSampleOutputDirectory + @"AddCharts.xlsx" );

// Gets the first Worksheet. A Workbook always contains at least 1 Worksheet.
var worksheet = workbook.Worksheets[ 0 ];

// Adds Values for Category.
worksheet.Cells[ "B4" ].Value = 2020;
worksheet.Cells[ "B5" ].Value = 2021;
worksheet.Cells[ "B6" ].Value = 2022;
worksheet.Cells[ "B7" ].Value = 2023;
worksheet.Cells[ "B8" ].Value = 2024;

// Adds Values for Series.
worksheet.Cells[ "C4" ].Value = 20d;
worksheet.Cells[ "C5" ].Value = 28d;
worksheet.Cells[ "C6" ].Value = 33d;
worksheet.Cells[ "C7" ].Value = 12d;
worksheet.Cells[ "C8" ].Value = 45d;

// Adds a Contour3DChart with the generic Add method and set its SubType. The size of the Chart will be from Cell E4 to L18.
var contour3DChart = worksheet.Charts.Add<Contour3DChart>( "E4", "L18" );
contour3DChart.SubType = Contour3DChartSubType.Contour;

// Sets the Chart's Title.
contour3DChart.Title.Text = "Profits";
contour3DChart.Title.TextOptions.Font.Bold = true;

// Sets the Legend.
contour3DChart.Legend.Position = LegendPositionType.Right;

// Sets the Category data(x values) for the Contour3DChart : Cells B4 to B8.
contour3DChart.CategoryData = CategoryData.FromCells( worksheet, "B4", "B8" );

// Adds ContourSeries to the Contour3DChart (y values) by specifying fixed values and a range of Cells’ Adresses.
var contourSeries1 = contour3DChart.SeriesCollection.AddFromValues<ContourSeries>( 5d, 10d, 15d, 20d, 40d );
contourSeries1.Name = "IBM";
var contourSeries2 = contour3DChart.SeriesCollection.AddFromCells<ContourSeries>( "C4", "C8" );
contourSeries2.Name = "Apple";

// Saves Workbook to disk.
workbook.Save();
Inheritance Hierarchy

System.Object
   Xceed.Workbooks.NET.WorkbookElement
      Xceed.Workbooks.NET.WorksheetElement
         Xceed.Workbooks.NET.ChartValueRange
            Xceed.Workbooks.NET.Series
               Xceed.Workbooks.NET.SurfaceSeries
                  Xceed.Workbooks.NET.ContourSeries

Requirements

Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
