    Grid Class
    In This Topic
    Exactly like WPF's native Grid panel, except this panel can animate its children and be used inside a SwitchPanel.
    Syntax
    'Declaration

<LocalizabilityAttribute(LocalizationCategory.Ignore)>
<ContentPropertyAttribute("Children")>
<StyleTypedPropertyAttribute(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)>
<XmlLangPropertyAttribute("Language")>
<UsableDuringInitializationAttribute(True)>
<RuntimeNamePropertyAttribute("Name")>
<UidPropertyAttribute("Uid")>
<TypeDescriptionProviderAttribute(MS.Internal.ComponentModel.DependencyObjectProvider)>
<NameScopePropertyAttribute("NameScope", System.Windows.NameScope)>
Public Class Grid
   Inherits AnimationPanel
    'Usage

Dim instance As Grid
    [Localizability(LocalizationCategory.Ignore)]
[ContentProperty("Children")]
[StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
[XmlLangProperty("Language")]
[UsableDuringInitialization(true)]
[RuntimeNameProperty("Name")]
[UidProperty("Uid")]
[TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
[NameScopeProperty("NameScope", System.Windows.NameScope)]
public class Grid : AnimationPanel
    Example
    <Window x:Class="GridSample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:xctk="http://schemas.xceed.com/wpf/xaml/toolkit"
        Title="GridSample">
  <xctk:Grid>
    <xctk:Grid.ColumnDefinitions>
      <xctk:ColumnDefinition />
      <xctk:ColumnDefinition />
      <xctk:ColumnDefinition />
    </xctk:Grid.ColumnDefinitions>
    <xctk:Grid.RowDefinitions>
      <xctk:RowDefinition />
      <xctk:RowDefinition />
      <xctk:RowDefinition />
    </xctk:Grid.RowDefinitions>
    <Rectangle Fill="Red" />
    <Rectangle Fill="Blue"
              Grid.Column="1"
              Grid.ColumnSpan="2" />
    <Rectangle Fill="Green"
              Grid.Row="1"
              Grid.ColumnSpan="2" />
    <Rectangle Fill="Orange"
              Grid.Row="1"
              Grid.Column="2"
              Grid.RowSpan="2" />
    <Rectangle Fill="Purple"
              Grid.Row="2"
              Grid.Column="0" />
    <Rectangle Fill="Yellow"
              Grid.Row="2"
              Grid.Column="1" />
  </xctk:Grid>
</Window>
    Inheritance Hierarchy

    System.Object
       System.Windows.Threading.DispatcherObject
          System.Windows.DependencyObject
             System.Windows.Media.Visual
                System.Windows.UIElement
                   System.Windows.FrameworkElement
                      System.Windows.Controls.Panel
                         Xceed.Wpf.Toolkit.Panels.PanelBase
                            Xceed.Wpf.Toolkit.Panels.AnimationPanel
                               Xceed.Wpf.Toolkit.Panels.Grid

    Requirements

    Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

    See Also

    Reference

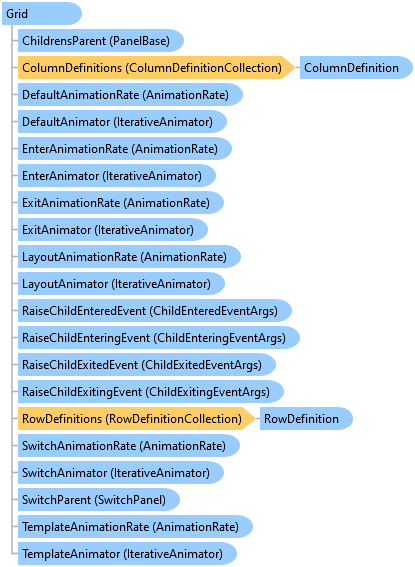

    Grid Members
    Xceed.Wpf.Toolkit.Panels Namespace
