FilePicker Class

In This Topic

A control offering a TextBox that allows to edit a file selection & a Browse Button that allows to open the System Explorer in order to manually pick one or more files.

Syntax

Visual Basic
C#

'Declaration

Public Class FilePicker
   Inherits Control
   Implements Microsoft.Maui.Controls.IAnimatable, Microsoft.Maui.Controls.IEffectControlProvider, Microsoft.Maui.Controls.IElementController, Microsoft.Maui.Controls.IGestureRecognizers, Microsoft.Maui.Controls.ILayout, Microsoft.Maui.Controls.ILayoutController, Microsoft.Maui.Controls.Internals.IGestureController, Microsoft.Maui.Controls.IViewController, Microsoft.Maui.Controls.IVisualElementController, Microsoft.Maui.HotReload.IHotReloadableView, Microsoft.Maui.IContentView, Microsoft.Maui.IContextFlyoutElement, Microsoft.Maui.ICrossPlatformLayout, Microsoft.Maui.IElement, Microsoft.Maui.IPadding, Microsoft.Maui.IPropertyMapperView, Microsoft.Maui.IReplaceableView, Microsoft.Maui.IToolTipElement, Microsoft.Maui.ITransform, Microsoft.Maui.IView, Microsoft.Maui.IVisualTreeElement

'Usage

Dim instance As FilePicker

public class FilePicker : Control, Microsoft.Maui.Controls.IAnimatable, Microsoft.Maui.Controls.IEffectControlProvider, Microsoft.Maui.Controls.IElementController, Microsoft.Maui.Controls.IGestureRecognizers, Microsoft.Maui.Controls.ILayout, Microsoft.Maui.Controls.ILayoutController, Microsoft.Maui.Controls.Internals.IGestureController, Microsoft.Maui.Controls.IViewController, Microsoft.Maui.Controls.IVisualElementController, Microsoft.Maui.HotReload.IHotReloadableView, Microsoft.Maui.IContentView, Microsoft.Maui.IContextFlyoutElement, Microsoft.Maui.ICrossPlatformLayout, Microsoft.Maui.IElement, Microsoft.Maui.IPadding, Microsoft.Maui.IPropertyMapperView, Microsoft.Maui.IReplaceableView, Microsoft.Maui.IToolTipElement, Microsoft.Maui.ITransform, Microsoft.Maui.IView, Microsoft.Maui.IVisualTreeElement

Remarks

It is possible to determine if the FilePicker allows only one file to be selected at a time or rather permits multiple files to be selected at once. For more information on this possibility, see the IsMultiSelect property.

A filter can also be added so that the System Explorer only displays specific file types. For more information on this topic, see the Filter property.

Example

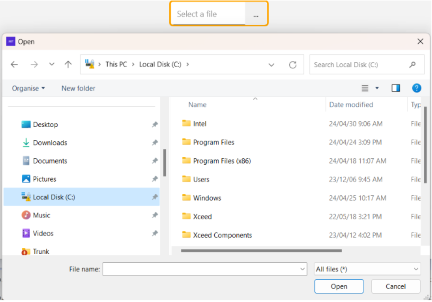

The following code would display this control:

XAML

<xctk:FilePicker Watermark="Select a file"
                 WidthRequest="175"
                 BorderBrush="Orange"
                 BorderThickness="3"
                 CornerRadius="5"
                 Filter="Images"/>

Inheritance Hierarchy

System.Object
   Microsoft.Maui.Controls.BindableObject
      Microsoft.Maui.Controls.Element
         Microsoft.Maui.Controls.NavigableElement
            Microsoft.Maui.Controls.VisualElement
               Microsoft.Maui.Controls.View
                  Microsoft.Maui.Controls.Compatibility.Layout
                     Microsoft.Maui.Controls.TemplatedView
                        Xceed.Maui.Toolkit.Control
                           Xceed.Maui.Toolkit.FilePicker

Public Constructors

	Name	Description
	FilePicker Constructor

Top

Public Fields

	Name	Description
	BrowseButtonStyleProperty
	BrowseContentProperty
	FilterProperty
	IsFocusUnderlineVisibleProperty
	IsFullPathProperty
	IsMultiSelectProperty
	IsOpenProperty
	SelectedFileProperty
	SelectedFilesProperty
	SelectedValueProperty
	TitleProperty
	WatermarkProperty

Top

Protected Fields

	Name	Description
	propertyMapper	(Inherited from Microsoft.Maui.Controls.View)

Top

Public Properties

	Name	Description
	AnchorX	(Inherited from Microsoft.Maui.Controls.VisualElement)
	AnchorY	(Inherited from Microsoft.Maui.Controls.VisualElement)
	AutomationId	(Inherited from Microsoft.Maui.Controls.Element)
	Background	Gets or sets the Brush that will be used to paint the Control's background. (Inherited from Xceed.Maui.Toolkit.Control)
	BackgroundColor	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Behaviors	(Inherited from Microsoft.Maui.Controls.VisualElement)
	BindingContext	(Inherited from Microsoft.Maui.Controls.BindableObject)
	BorderBrush	Gets or sets the Brush that will be used to paint the Control's Border. (Inherited from Xceed.Maui.Toolkit.Control)
	BorderThickness	Gets or sets the thickness of this Control's Border. (Inherited from Xceed.Maui.Toolkit.Control)
	Bounds	(Inherited from Microsoft.Maui.Controls.VisualElement)
	BrowseButtonStyle	Gets or sets the Browse Button's Style.
	BrowseContent	Gets or sets the Browse Button's Content.
	CascadeInputTransparent	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	class	(Inherited from Microsoft.Maui.Controls.NavigableElement)
	ClassId	(Inherited from Microsoft.Maui.Controls.Element)
	Clip	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ControlTemplate	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	CornerRadius	Gets or sets the radius for the 4 corners of this Control. (Inherited from Xceed.Maui.Toolkit.Control)
	DesiredSize	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Dispatcher	(Inherited from Microsoft.Maui.Controls.BindableObject)
	Effects	(Inherited from Microsoft.Maui.Controls.Element)
	Filter	Gets or sets the filter that will be used by the System Explorer once it is opened.
	FlowDirection	(Inherited from Microsoft.Maui.Controls.VisualElement)
	FontAttributes	Gets or sets the FontAttributes that will be applied to the Control's textual Content. (Inherited from Xceed.Maui.Toolkit.Control)
	FontFamily	Gets or sets the font family that will be used to display the Control's textual Content. (Inherited from Xceed.Maui.Toolkit.Control)
	FontSize	Gets or sets the font size that will determine the scale of the Control's textual Content. (Inherited from Xceed.Maui.Toolkit.Control)
	Frame	(Inherited from Microsoft.Maui.Controls.VisualElement)
	GestureRecognizers	(Inherited from Microsoft.Maui.Controls.View)
	Handler	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Height	(Inherited from Microsoft.Maui.Controls.VisualElement)
	HeightRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	HorizontalContentOptions	Gets or sets how the Control's Content is aligned horizontally. (Inherited from Xceed.Maui.Toolkit.Control)
	HorizontalOptions	(Inherited from Microsoft.Maui.Controls.View)
	Id	(Inherited from Microsoft.Maui.Controls.Element)
	InputTransparent	(Inherited from Microsoft.Maui.Controls.VisualElement)
	IsClippedToBounds	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	IsEnabled	(Inherited from Microsoft.Maui.Controls.VisualElement)
	IsFocused	(Inherited from Microsoft.Maui.Controls.VisualElement)
	IsFocusUnderlineVisible	Gets or sets if a line appears under the TextBox when it is selected.
	IsFullPath	Gets or sets if the TextBox displays the path leading to the selected file or only the file's name.
	IsLoaded	(Inherited from Microsoft.Maui.Controls.VisualElement)
	IsMultiSelect	Gets or sets if multiple files can be selected by the FilePicker.
	IsOpen	Gets or sets if the FilePicker has opened the System Explorer.
	IsVisible	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Margin	(Inherited from Microsoft.Maui.Controls.View)
	MaximumHeightRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	MaximumWidthRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	MinimumHeightRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	MinimumWidthRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Navigation	(Inherited from Microsoft.Maui.Controls.NavigableElement)
	Opacity	(Inherited from Microsoft.Maui.Controls.VisualElement)
	OverrideDefaultVisualStates	Gets or sets if the Control's VisualStates are overridden or not. (Inherited from Xceed.Maui.Toolkit.Control)
	Padding	Gets or sets the amount of padding added around the Control. (Inherited from Xceed.Maui.Toolkit.Control)
	Parent	(Inherited from Microsoft.Maui.Controls.Element)
	Resources	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Rotation	(Inherited from Microsoft.Maui.Controls.VisualElement)
	RotationX	(Inherited from Microsoft.Maui.Controls.VisualElement)
	RotationY	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Scale	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ScaleX	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ScaleY	(Inherited from Microsoft.Maui.Controls.VisualElement)
	SelectedFile	Gets or sets which file is selected by the FilePicker.
	SelectedFiles	Gets or sets a collection of files selected by the FilePicker.
	SelectedValue	Gets a string that represents the selected file(s).
	Shadow	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Style	(Inherited from Microsoft.Maui.Controls.NavigableElement)
	StyleClass	(Inherited from Microsoft.Maui.Controls.NavigableElement)
	StyleId	(Inherited from Microsoft.Maui.Controls.Element)
	TextColor	Gets or sets the text's Color. (Inherited from Xceed.Maui.Toolkit.Control)
	Title	Gets or sets the Title that will be displayed in the System Explorer's window.
	TranslationX	(Inherited from Microsoft.Maui.Controls.VisualElement)
	TranslationY	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Triggers	(Inherited from Microsoft.Maui.Controls.VisualElement)
	VerticalContentOptions	Gets or sets how the Control's Content is aligned vertically. (Inherited from Xceed.Maui.Toolkit.Control)
	VerticalOptions	(Inherited from Microsoft.Maui.Controls.View)
	Visual	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Watermark	Gets or sets the watermark that will be displayed in the TextBox when no file is selected in the FilePicker.
	Width	(Inherited from Microsoft.Maui.Controls.VisualElement)
	WidthRequest	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Window	(Inherited from Microsoft.Maui.Controls.VisualElement)
	X	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Y	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ZIndex	(Inherited from Microsoft.Maui.Controls.VisualElement)

Top

Protected Properties

	Name	Description
	GestureController	(Inherited from Microsoft.Maui.Controls.View)
	IsEnabledCore	(Inherited from Microsoft.Maui.Controls.VisualElement)

Top

Public Methods

	Name	Description
	AddLogicalChild	(Inherited from Microsoft.Maui.Controls.Element)
	Arrange	(Inherited from Microsoft.Maui.Controls.VisualElement)
	BatchBegin	(Inherited from Microsoft.Maui.Controls.VisualElement)
	BatchCommit	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ClearLogicalChildren	(Inherited from Microsoft.Maui.Controls.Element)
	ClearValue	Overloaded. (Inherited from Microsoft.Maui.Controls.BindableObject)
	CoerceValue	Overloaded. (Inherited from Microsoft.Maui.Controls.BindableObject)
	CrossPlatformArrange	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	CrossPlatformMeasure	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	FindByName	(Inherited from Microsoft.Maui.Controls.Element)
	Focus	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ForceLayout	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	GetChildElements	(Inherited from Microsoft.Maui.Controls.View)
	GetValue	(Inherited from Microsoft.Maui.Controls.BindableObject)
	InsertLogicalChild	(Inherited from Microsoft.Maui.Controls.Element)
	IsSet	(Inherited from Microsoft.Maui.Controls.BindableObject)
	Layout	(Inherited from Microsoft.Maui.Controls.VisualElement)
	LowerChild	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	Measure	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	RaiseChild	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	RemoveBinding	(Inherited from Microsoft.Maui.Controls.BindableObject)
	RemoveDynamicResource	(Inherited from Microsoft.Maui.Controls.Element)
	RemoveLogicalChild	(Inherited from Microsoft.Maui.Controls.Element)
	ResolveControlTemplate	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	SetBinding	(Inherited from Microsoft.Maui.Controls.BindableObject)
	SetDynamicResource	(Inherited from Microsoft.Maui.Controls.Element)
	SetValue	Overloaded. (Inherited from Microsoft.Maui.Controls.BindableObject)
	Unfocus	(Inherited from Microsoft.Maui.Controls.VisualElement)

Top

Protected Methods

	Name	Description
	ApplyBindings	(Inherited from Microsoft.Maui.Controls.BindableObject)
	ArrangeOverride	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	ChangeVisualState	(Inherited from Microsoft.Maui.Controls.View)
	Finalize	(Inherited from Microsoft.Maui.Controls.VisualElement)
	GetRendererOverrides	(Inherited from Microsoft.Maui.Controls.View)
	GetTemplateChild	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	InvalidateLayout	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	InvalidateMeasure	(Inherited from Microsoft.Maui.Controls.VisualElement)
	InvalidateMeasureOverride	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	LayoutChildren	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	MeasureOverride	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	OnApplyTemplate	Overridden.
	OnBindingContextChanged	(Inherited from Microsoft.Maui.Controls.View)
	OnChildAdded	(Inherited from Microsoft.Maui.Controls.VisualElement)
	OnChildMeasureInvalidated	Overloaded. (Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	OnChildRemoved	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	OnChildrenReordered	(Inherited from Microsoft.Maui.Controls.VisualElement)
	OnFontAttributesChanged	Overridden.
	OnFontFamilyChanged	Overridden.
	OnFontSizeChanged	Overridden.
	OnHandlerChanged	(Inherited from Microsoft.Maui.Controls.Element)
	OnHandlerChanging	(Inherited from Microsoft.Maui.Controls.Element)
	OnIsOpenChanged
	OnMeasure	(Inherited from Microsoft.Maui.Controls.TemplatedView)
	OnParentChanged	(Inherited from Microsoft.Maui.Controls.Element)
	OnParentChanging	(Inherited from Microsoft.Maui.Controls.Element)
	OnParentSet	(Inherited from Microsoft.Maui.Controls.NavigableElement)
	OnPropertyChanged	(Inherited from Xceed.Maui.Toolkit.Control)
	OnPropertyChanging	(Inherited from Microsoft.Maui.Controls.BindableObject)
	OnSelectedFileChanged
	OnSelectedFilesChanged
	OnSelectedValueChanged
	OnSizeAllocated	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	OnTextColorChanged	Overridden.
	RefreshIsEnabledProperty	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ShouldInvalidateOnChildAdded	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	ShouldInvalidateOnChildRemoved	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	SizeAllocated	(Inherited from Microsoft.Maui.Controls.VisualElement)
	UnapplyBindings	(Inherited from Microsoft.Maui.Controls.BindableObject)
	UpdateChildrenLayout	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)

Top

Public Events

	Name	Description
	BindingContextChanged	(Inherited from Microsoft.Maui.Controls.BindableObject)
	ChildAdded	(Inherited from Microsoft.Maui.Controls.Element)
	ChildRemoved	(Inherited from Microsoft.Maui.Controls.Element)
	ChildrenReordered	(Inherited from Microsoft.Maui.Controls.VisualElement)
	DescendantAdded	(Inherited from Microsoft.Maui.Controls.Element)
	DescendantRemoved	(Inherited from Microsoft.Maui.Controls.Element)
	Focused	(Inherited from Microsoft.Maui.Controls.VisualElement)
	HandlerChanged	(Inherited from Microsoft.Maui.Controls.Element)
	HandlerChanging	(Inherited from Microsoft.Maui.Controls.Element)
	LayoutChanged	(Inherited from Microsoft.Maui.Controls.Compatibility.Layout)
	Loaded	(Inherited from Microsoft.Maui.Controls.VisualElement)
	MeasureInvalidated	(Inherited from Microsoft.Maui.Controls.VisualElement)
	ParentChanged	(Inherited from Microsoft.Maui.Controls.Element)
	ParentChanging	(Inherited from Microsoft.Maui.Controls.Element)
	PropertyChanged	(Inherited from Microsoft.Maui.Controls.BindableObject)
	PropertyChanging	(Inherited from Microsoft.Maui.Controls.BindableObject)
	SelectedFileChanged	This event is raised when a new file is selected.
	SelectedFilesChanged	This event is raised when the SelectedFiles property is modified.
	SizeChanged	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Unfocused	(Inherited from Microsoft.Maui.Controls.VisualElement)
	Unloaded	(Inherited from Microsoft.Maui.Controls.VisualElement)

Top

Requirements

Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

FilePicker Members
Xceed.Maui.Toolkit Namespace

Send Feedback

Business Suite

Ultimate Suite

Reference
