Chart Class

In This Topic

A control used to display DataPoints on a 2D chart.

Object Model

Syntax

Visual Basic
C#

'Declaration

Public Class Chart
   Inherits Control
   Implements Microsoft.Maui.Controls.IAnimatable, Microsoft.Maui.Controls.IEffectControlProvider, Microsoft.Maui.Controls.IElementController, Microsoft.Maui.Controls.IGestureRecognizers, Microsoft.Maui.Controls.ILayout, Microsoft.Maui.Controls.ILayoutController, Microsoft.Maui.Controls.Internals.IGestureController, Microsoft.Maui.Controls.IViewController, Microsoft.Maui.Controls.IVisualElementController, Microsoft.Maui.HotReload.IHotReloadableView, Microsoft.Maui.IContentView, Microsoft.Maui.IContextFlyoutElement, Microsoft.Maui.ICrossPlatformLayout, Microsoft.Maui.IElement, Microsoft.Maui.IPadding, Microsoft.Maui.IPropertyMapperView, Microsoft.Maui.IReplaceableView, Microsoft.Maui.IToolTipElement, Microsoft.Maui.ITransform, Microsoft.Maui.IView, Microsoft.Maui.IVisualTreeElement

'Usage

Dim instance As Chart

public class Chart : Control, Microsoft.Maui.Controls.IAnimatable, Microsoft.Maui.Controls.IEffectControlProvider, Microsoft.Maui.Controls.IElementController, Microsoft.Maui.Controls.IGestureRecognizers, Microsoft.Maui.Controls.ILayout, Microsoft.Maui.Controls.ILayoutController, Microsoft.Maui.Controls.Internals.IGestureController, Microsoft.Maui.Controls.IViewController, Microsoft.Maui.Controls.IVisualElementController, Microsoft.Maui.HotReload.IHotReloadableView, Microsoft.Maui.IContentView, Microsoft.Maui.IContextFlyoutElement, Microsoft.Maui.ICrossPlatformLayout, Microsoft.Maui.IElement, Microsoft.Maui.IPadding, Microsoft.Maui.IPropertyMapperView, Microsoft.Maui.IReplaceableView, Microsoft.Maui.IToolTipElement, Microsoft.Maui.ITransform, Microsoft.Maui.IView, Microsoft.Maui.IVisualTreeElement

Remarks

A Chart can contain multiple Series; each of those Series can be customized as seen fit.

All of the Chart's parts, like its Axis, Legend, etc., can also be customized as needed.

Note that Xceed's Chart currently supports line charts & bar charts only.

Example

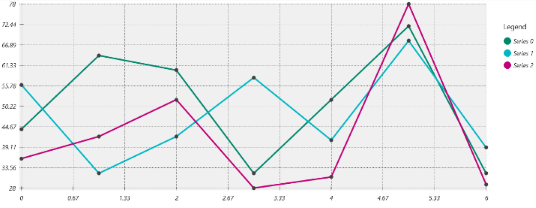

The following code would display this control:

XAML

<xctk:Chart ShowLegend="True">
  <xctk:Chart.Series>
    <xctk:Series>
      <xctk:Series.DataPoints>
        <xctk:DataPoint X="0"
                        Y="44"/>
        <xctk:DataPoint X="1"
                        Y="64"/>
        <xctk:DataPoint X="2"
                        Y="60"/>
        <xctk:DataPoint X="3"
                        Y="32"/>
        <xctk:DataPoint X="4"
                        Y="52"/>
        <xctk:DataPoint X="5"
                        Y="72"/>
        <xctk:DataPoint X="6"
                        Y="32"/>
      </xctk:Series.DataPoints>
    </xctk:Series>
    <xctk:Series>
      <xctk:Series.DataPoints>
        <xctk:DataPoint X="0"
                        Y="56"/>
        <xctk:DataPoint X="1"
                        Y="32"/>
        <xctk:DataPoint X="2"
                        Y="42"/>
        <xctk:DataPoint X="3"
                        Y="58"/>
        <xctk:DataPoint X="4"
                        Y="41"/>
        <xctk:DataPoint X="5"
                        Y="68"/>
        <xctk:DataPoint X="6"
                        Y="39"/>
      </xctk:Series.DataPoints>
    </xctk:Series>
    <xctk:Series>
      <xctk:Series.DataPoints>
        <xctk:DataPoint X="0"
                        Y="36"/>
        <xctk:DataPoint X="1"
                        Y="42"/>
        <xctk:DataPoint X="2"
                        Y="52"/>
        <xctk:DataPoint X="3"
                        Y="28"/>
        <xctk:DataPoint X="4"
                        Y="31"/>
        <xctk:DataPoint X="5"
                        Y="78"/>
        <xctk:DataPoint X="6"
                        Y="29"/>
      </xctk:Series.DataPoints>
    </xctk:Series>
  </xctk:Chart.Series>
</xctk:Chart>

Inheritance Hierarchy

System.Object
   Microsoft.Maui.Controls.BindableObject
      Microsoft.Maui.Controls.Element
         Microsoft.Maui.Controls.NavigableElement
            Microsoft.Maui.Controls.VisualElement
               Microsoft.Maui.Controls.View
                  Microsoft.Maui.Controls.Compatibility.Layout
                     Microsoft.Maui.Controls.TemplatedView
                        Xceed.Maui.Toolkit.Control
                           Xceed.Maui.Toolkit.Chart

Requirements

Target Platforms: Windows 11, Windows 10, Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

Chart Members
Xceed.Maui.Toolkit Namespace
