By default, advanced filtering is enabled, but limited to columns that also have automatic filtering enabled. This behavior may evolve over time as more features are developed. To configure how and when the advanced filtering control is displayed, the view's AdvancedFilterMode property must be set to the desired value. It is possible to disable advanced filtering on a column basis by setting the column's AllowAdvancedFilter property to false.

Glyphs and ToolTips

Both automatic and advanced filtering are activated by the toggle button (ColumnFilterControlToggleButton) next to the column's name in the ColumnManagerCell.

Figure 1: Toggle Button for the AutoFilterControl (ColumnFilterControlToggleButton)

The glyphs will vary depending on the available actions. The possible actions for automatic filtering are select all and clear all, while actions for advanced filtering are add a filter, update a filter and clear the filter. The glyphs and their tooltips may be modified by the following view properties:

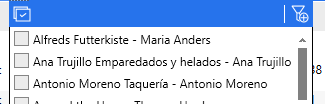

Figure 2: AutoFilterControl - without a filter

Figure 3: AutoFilterControl - with a filter

Filter Expression Editor

The advanced filtering window displays the FilterExpressionEditor control which contains editors to build the desired filter expression. One of the editor defines the logical operator (And or Or) between the operands while the other define the comparison operator (i.e. greater than, greater than or equal, etc.) to use and the value to compare to. The appearance of the filter expression editor can be modified by providing a new style through each column's FilterExpressionEditorStyle property.

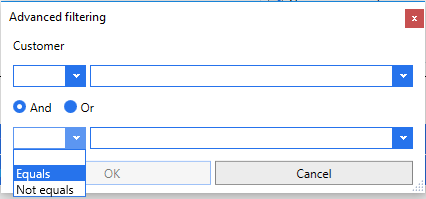

Figure 4: Advanced Filtering - Filter Expression Editor window

The editor used to enter the value itself is the same as the one used for editing data cells. That is, the column's CellEditor provides the template used for both data cells and the filter expression editor.

It may happen that the filter expression editor may not be able to display an active filter expression (for instance the expression provided on the corresponding FilterCell is too complex). In such a case, it displays a message instead of editors. That message may be modified with the FilterExpressionEditor's FilterCriterionNotDisplayableText property.

Examples

All examples in this topic assume that the grid is bound to the Orders table of the Northwind database, unless stated otherwise.

Example 1: Localize the filter operators

<Grid xmlns:xcdg="http://schemas.xceed.com/wpf/xaml/datagrid">
   <Grid.Resources>
      <ResourceDictionary>
         <xcdg:DataGridCollectionViewSource x:Key="cvs_orders"
                                            Source="{Binding Source={x:Static Application.Current}, Path=Orders}" />
         <Style x:Key="filterExpressionEditorStyle"
                TargetType="xcdg:FilterExpressionEditor">
            <Setter Property="FilterOperatorsText">
               <Setter.Value>
                  <col:Hashtable>
                     <s:String x:Key="{x:Type xcdg:GreaterThanFilterCriterion}">&gt;</s:String>
                     <s:String x:Key="{x:Type xcdg:GreaterThanOrEqualToFilterCriterion}">&gt;=</s:String>
                     <s:String x:Key="{x:Type xcdg:LessThanFilterCriterion}">&lt;</s:String>
                     <s:String x:Key="{x:Type xcdg:LessThanOrEqualToFilterCriterion}">&lt;=</s:String>
                     <s:String x:Key="{x:Type xcdg:EqualToFilterCriterion}">=</s:String>
                     <s:String x:Key="{x:Type xcdg:DifferentThanFilterCriterion}">&lt;&gt;</s:String>
                  </col:Hashtable>
               </Setter.Value>
            </Setter>
         </Style>
      </ResourceDictionary>
   </Grid.Resources>
   <xcdg:DataGridControl x:Name="OrdersGrid"
                         ItemsSource="{Binding Source={StaticResource cvs_orders}}">
      <xcdg:DataGridControl.Columns>
         <xcdg:Column FieldName="ShipCountry"
                      FilterExpressionEditorStyle="{StaticResource filterExpressionEditorStyle}" />
      </xcdg:DataGridControl.Columns>
   </xcdg:DataGridControl>
</Grid>
