    ElementalPinkTheme Class
    In This Topic

    The following code provides the implementation of the ElementalPinkTheme class, which was created to support the custom ImageAndDoubleTitleSurfaceConfiguration surface configuration demonstrated in Figure 1.

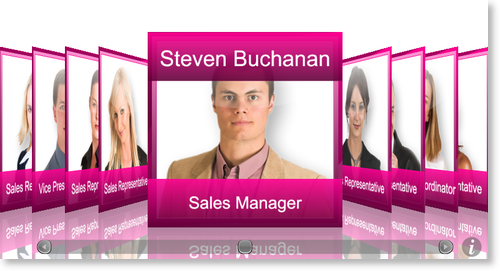

    Figure 1: ImageAndDoubleTitleSurfaceConfiguration in Elemental Pink theme

    VB.NET
    Copy Code
    Imports System
    Imports Xceed.Wpf.DataGrid.Views
    Imports Xceed.Wpf.DataGrid.Views.Surfaces
    Namespace Xceed.Wpf.Documentation

      <TargetSurfaceConfiguration( GetType( ImageAndDoubleTitleSurfaceConfiguration ) )> _
      Public Class ElementalPinkTheme
                   Inherits ElementalBlackTheme
        Public Sub New()
          ' the default surface configurations are added to the DefaultSurfaceConfigurations
          ' collection in the ElementalBlackTheme constructor.
          MyBase.New()
        End Sub
        <TargetRegionPresenterName( "REGION_SecondTitle" )> _
        Public Property DefaultSecondTitleRegionConfiguration As RegionConfiguration
          Get
          End Get
          Set( ByVal Value As RegionConfiguration )
          End Set
        End Property
      End Class
    End Namespace

    C#
    Copy Code
    using System;
    using Xceed.Wpf.DataGrid.Views;
    using Xceed.Wpf.DataGrid.Views.Surfaces;
    namespace Xceed.Wpf.Documentation
    {
     [TargetSurfaceConfiguration( typeof( ImageAndDoubleTitleSurfaceConfiguration ) )]
     public class ElementalPinkTheme: ElementalBlackTheme
      {
        public ElementalPinkTheme()
          : base()
        {
          // the default surface configurations are added to the DefaultSurfaceConfigurations
          // collection in the ElementalBlackTheme constructor.
        }
        [TargetRegionPresenterName( "REGION_SecondTitle" )]
        public RegionConfiguration DefaultSecondTitleRegionConfiguration
        {
          get;
          set;
        }
      }
    }
