    Overlapped Line
    In This Topic

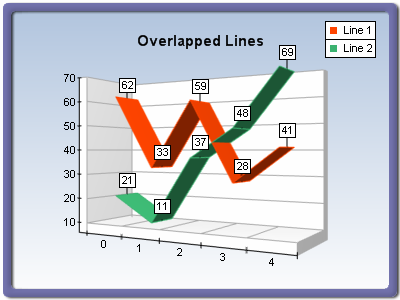

    Overlapped line series are created by using several instances of the LineSeries class. The first created line series must have its MultiLineMode property set to Series. The MultiLineMode property of the subsequent line series must be set to Overlapped. Overlapped line series are displayed in the same depth space. The following figure shows a typical overlapped line chart:



    figure 1.

    Creating the Overlapped Line Series

    The following example demonstrates how to create an overlapped line chart with two lines:

    VB.NET
    ' there is one chart created by default
    Dim chart As Chart = CType(chartControl1.Charts(0), Chart)

    Dim line1 As LineSeries = CType(chart.Series.Add(SeriesType.Line), LineSeries)
    Dim line2 As LineSeries = CType(chart.Series.Add(SeriesType.Line), LineSeries)

    line1.MultiLineMode = MultiLineMode.Series
    line2.MultiLineMode = MultiLineMode.Overlapped
    C#
    // there is one chart created by default
    Chart chart = (Chart)chartControl1.Charts[0];
    LineSeries line1 = (LineSeries)chart.Series.Add(SeriesType.Line);
    LineSeries line2 = (LineSeries)chart.Series.Add(SeriesType.Line);
    line1.MultiLineMode = MultiLineMode.Series;
    line2.MultiLineMode = MultiLineMode.Overlapped;

    If you want to create a second overlapped line with two lines behind the overlapped line created in the previous sample, you must add the following code:

    VB.NET
    Dim line4 As LineSeries = CType(chart.Series.Add(SeriesType.Line), LineSeries)
    Dim line5 As LineSeries = CType(chart.Series.Add(SeriesType.Line), LineSeries)

    line4.MultiLineMode = MultiLineMode.Series
    line5.MultiLineMode = MultiLineMode.Overlapped
    C#
    LineSeries line4 = (LineSeries)chart.Series.Add(SeriesType.Line);
    LineSeries line5 = (LineSeries)chart.Series.Add(SeriesType.Line);
    line4.MultiLineMode = MultiLineMode.Series;
    line5.MultiLineMode = MultiLineMode.Overlapped;

    Related Examples

    Windows Forms: Series\Line\Overlapped Line

    See Also

    LineSeries
