    Horizontal Charts
    In This Topic

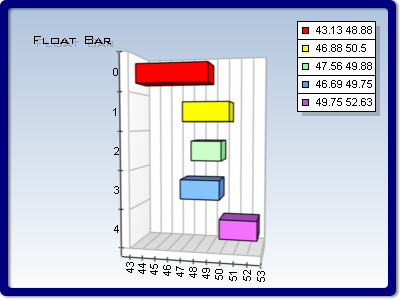

    It is often necessary to display some chart types such as Bar, Float Bar, Line, etc. in a horizontal projection. The easiest way to create horizontal charts is with the help of the predefined chart styles of the Chart object. The following figure displays a horizontal float bar chart with left alignment.



    The chart layout is controlled with the help of the PredefinedChartStyle property of the Chart object. This property is actually a helper that affects the chart 3D-view as well as the alignments of the axes' titles and texts. It accepts values from the enumeration type PredefinedChartStyle and accepts the following members (for details, see PredefinedChartStyle Enumeration):

    Vertical: The standard layout of the chart, which is set as default.
    HorizontalLeft
    : Horizontal layout with left alignment.
    HorizontalRight
    : Horizontal layout with right alignment.

    The following code creates a left-aligned horizontal bar chart:

    VB.NET

    Dim chart As Chart =   chartControl1.Charts.GetAt(0)

    chart.PredefinedChartStyle = PredefinedChartStyle.HorizontalLeft

    Dim s As BarSeries = CType(chart.Series.Add(SeriesType.Bar), BarSeries)

    s.Add(5)

    s.Add(3)

    s.Add(7)

    s.Add(6)

    chartControl1.Refresh()

    C#
    Chart chart = chartControl1.Charts.GetAt(0);
    chart.PredefinedChartStyle = PredefinedChartStyle.HorizontalLeft;
    BarSeries s = (BarSeries)chart.Series.Add(SeriesType.Bar);
    s.Add(5);
    s.Add(3);
    s.Add(7);
    s.Add(6);
    chartControl1.Refresh();

    You can achieve similar results by manually modifying the chart 3D-view and axis properties. For example, you can use the SetPredefinedProjection method of the View object with one of the following values to create a left-aligned chart:

    PredefinedProjection.OrthogonalHorizontalLeft
    PredefinedProjection.OrthogonalHalfHorizontalLeft
    PredefinedProjection.PerspectiveHorizontalLeft

    Furthermore, you will have to modify the HorzAlign and VertAlign properties of the axis texts and axis titles for each visible axis. Since this can be a time-consuming task, it is generally recommended to use the PredefinedChartStyle property for overall setup and after that fine-tune the axes and 3D-view if this is required.

    Related Examples

    Windows Forms: Series\Bar\Horizontal Bar;   Series\Float Bar\Horizontal Float Bar

    See Also

    Chart | Axis | View
